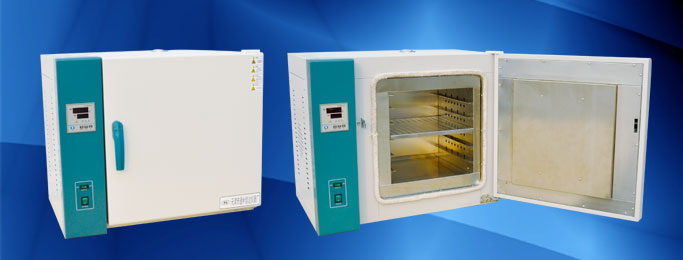

Uses Overview:
The European design, with fine design, novel shape.Advanced technology and precise temperature control, easy maintenance, convenient operation type of export-oriented drying box.Apply to industrial and mining enterprises, research institutes, medical units for laboratory drying, heat treatment of.
Features:
1. Shell is made of high quality cold rolling steel, electrostatic spraying the surface treatment technology, handsome in appearance, anti-corrosion durability.
2. Studio using high temperature stainless steel manufacturing, to ensure no deformation under the condition of high temperature .
3.Using PID intelligent temperature control instrument, temperature control instrument with time, over-temperature alarm, a double-screen display function, high accuracy, easy reading.
4. Use of aviation material high temperature resistant sealing strip, with the locking type adjustable door lock, ensure good sealing performance, prevent heat loss.
5. Sound insulation design, long-term operation at high temperature, long service life, convenient replacement, green, energy-saving, environmental protection.
6. With leakage protection (optional) to ensure staff safety and test items.
7.Omnibearing stereo heating and forced air circulation technology, to ensure uniform temperature in the studio.
8.Unique geometric cavity clean design, to ensure the sample active perfect protection.
9.Inheritance of aesthetic design, show the elegant luxury of instrument modeling.
The main technical parameters:
| Model |
BPG43 |
BPG65 |
BPG91 |
BPG151 |
| Voltage |
AC220V 50HZ |
| Tem. range(℃) |
Room temperature+10-450℃ |
| Tem. motion(℃) |
±1℃ |
| Input power |
1.8KW |
2.6KW |
3KW |
3.6KW |
| Interior dimensions W×D×H(mm) |
350×350×350 |
400×400×400 |
450×450×450 |
550×550×500 |
| Exterior dimensions W×D×H(mm) |
505×750×640 |
535×800×690 |
605×850×750 |
655×950×840 |
| Shelf load |
20KG | |
