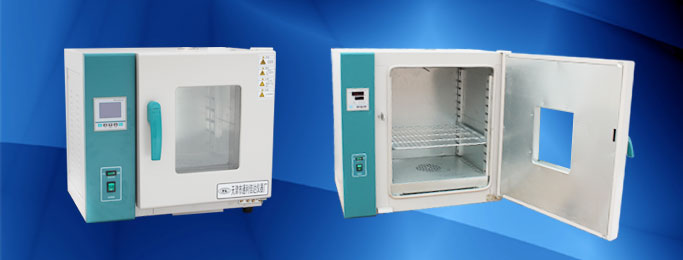

Uses Overview:
The European design, with fine design, novel shape.Advanced technology and precise temperature control, easy maintenance, convenient operation type of export-oriented drying box,apply to industrial and mining enterprises, research institutes, medical units for drying, baking laboratory wax melting and heat treatment.
Features:
1. Case made of high quality cold rolling steel with spaying surface, modeling nice, anti-corrosion and durability.
2.Working room is made of stainless steel ,Adjustable electrochemical polishing of stainless steel plate, four horns in a semicircular arc,.Easy to be cleaned .The height of shelf could be adjusted.
3.Using PID intelligent temperature control instrument, temperature control instrument with timing, over-temperature alarm, a double-screen display function, high accuracy, easy reading.
4.To adopt a low noise, high temperature hot air machine, turn off the fan as a constant temperature type (WH) drying box to use
5.Use high-temperature silicone seal, with the locking type adjustable door lock, ensure good sealing performance, prevent heat loss.
6.Perfect insulation design, long-term operation at high temperature, long service life, convenient replacement, green, energy saving and environmental protection.
7.With over temperature power-down, alarm system, when the control temperature exceeds the set upper limit instrument "automatically cut off the power output" buzzer alarm.Ensure that the experiment,and the person are safe.
8.Box door is provided with a double-layer tempered glass, easy to observe the objects inside the heating case studio.
9.Omnibearing stereo heating and forced air circulation technology, to ensure uniform temperature in the studio.
10.Unique geometric cavity clean design, to ensure the sample active perfect protection.
11.Inheritance of aesthetic design, show the elegant luxury of instrument modeling.
The main technical parameters:
| Model |
WG9020A WG9020B WG9020BE |
WG9040A WG9040B WG904BE |
WG9070A WG9070B WG907BE |
WG9140A WG9140B WG9014BE |
WG9220A WG9220B WG9220BE |
| Voltage |
AC220V 50HZ |
| Tem. range(℃) |
RT+10-250℃ |
| Tem.motion(℃) |
±1℃ |
| Input power |
600W |
1000W |
1500W |
2000W |
3000W |
| Interior dimensions W×D×H(mm ) |
260×280×280 |
350×360×350 |
400×400×450 |
450×500×550 |
500×600×700 |
| Exterior dimensions W×D×H(mm) |
385×580×500 |
480×640×570 |
530×680×670 |
580×780×770 |
620×910×1020 |
| Shelf load |
15KG | (Note:A means high quality cold-rolled steel plate workroom ,B means stainless steel workroom,BE means Liquid crystal instrument and stainless steel workroom.) |
