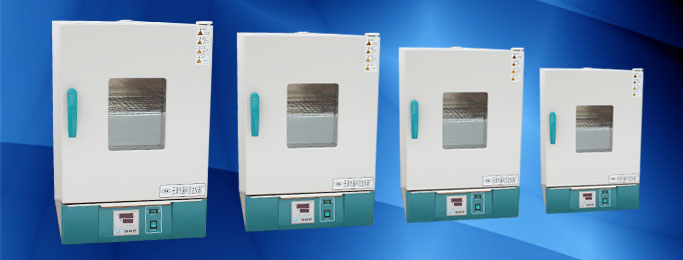

Products>>Electric blast drying oven(101 Series)

Use overview:

  Apply to industrial and mining enterprises, universities, research institutes, medical laboratory units on articles drying, baking, heat treatment .

features:

1. The intelligent PID control instrument with timing, alarm, temperature control, temperature deviation dressing self-adjusting functions, accurate and reliable temperature control.
2.Omnibearing stereo heating forced blowing technology, to ensure that the internal temperature uniformity of studio.
3.With over temperature power-down, alarm system, when the control temperature exceeds the set upper limit instrument automatically cut off the power output buzzer alarm.Ensure that the experiment,and the person are safe.
4.Use high-temperature silicone seal, with the locking type adjustable door lock, ensure good sealing performance, prevent heat loss.
5.Perfect insulation design, long-term operation at high temperature, long service life, convenient replacement, green, energy saving and environmental protection.
6.Box door is provided with a double-layer tempered glass, easy to observe the objects inside the heating case studio.
7.Case made of high quality cold rolling steel with spaying surface, modeling nice, anti-corrosion and durability.
8.Unique geometric cavity clean design, to ensure the sample active perfect protection.
9.Working room is made of stainless steel ,Adjustable electrochemical polishing of stainless steel plate, four horns in a semicircular arc,.Easy to be cleaned .The height of shelf could be adjusted.
10.Inheritance of aesthetic design, show the elegant luxury of instrument modeling.

The main technical parameters:

Model 101-0A
101-0AB
101-1A
101-1AB
101-2A
101-2AB
101-3A
101-3AB
Voltage AC220V 50HZ
Tem. range(℃) Room temperature+10-250℃
Tem. motion(℃) ±1℃
Ambient Temperature 5-40℃
Input power 1KW 1.5KW 2.0KW 3.0KW
Interior dimensions W×D×H(mm) 350×360×350 400×400×450 450×500×550 500×600×700
Exterior dimensions W×D×H(mm) 480×490×700 530×530×800 580×630×900 630×730×1050
Shelf load 15KG
(Note:AB repressing working room made of stainless steel,A is fine cold rolling steel )
