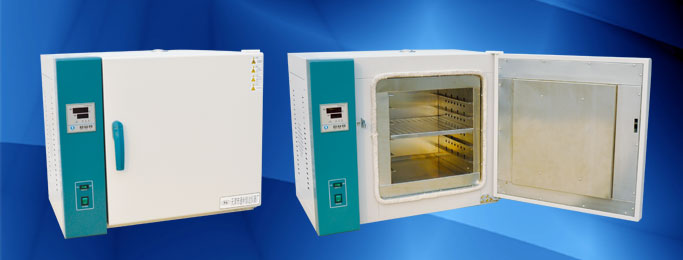

With fine design, novel shape.Advanced technology,temperature control accuracy,reliable function.easy maintenance and operation .Apply to industrial and mining enterprises, research institutes, medical units for laboratory drying, heat treatment .
1. Case made of high quality cold rolling steel with spaying surface, modeling nice, anti-corrosion durability.DIV>
2.Studio using high temperature stainless steel , to ensure no deformation under the condition of high temperature.
3.Using PID intelligent temperature control instrument, temperature control instrument with timing, over-temperature alarm, a double-screen display function, high accuracy, easy reading.
4.Use high-temperature silicone seal, with the locking type adjustable door lock, ensure good sealing performance, prevent heat loss.
5.Perfect insulation design, long-term operation at high temperature, long service life, convenient replacement, green, energy saving and environmental protection.
6.Using far infrared radiation heating element, ensure rapid warming.
7.Omnibearing stereo heating forced blowing technology, ensure consistent temperature in the studio.
8.Unique geometric cavity clean design, to ensure the sample active perfect protection.
9.Inheritance of aesthetic design, show the elegant luxury of instrument modeling.
The main technical parameters：
| Model |
HY-0 |
HY-1 |
HY-2 |
HY-3 |
| Voltage |
AC220V 50HZ |
| Tem. range(℃） |
Room temperature+10-300℃ |
| Tem. motion(℃） |
±1℃ |
| Input power |
1KW |
1.5KW |
2.0KW |
2.5KW |
| Interior dimensions W×D×H(mm) |
350×350×350 |
400×400×400 |
450×450×450 |
550×550×500 |
| Exterior dimensions W×D×H(mm) |
505×750×640 |
535×800×690 |
605×850×750 |
655×950×840 |
| Shelf load |
20KG |
